Configuration

STEP 1 : CONNECTIONS

Connect the Allen & Heath Xone:K3 to a USB port of your computer via the rear-panel USB socket, using a USB-C cable.

STEP 2 : DRIVERS

Drivers : No driver is required to be installed for the Xone K3. The device is a USB class compliant and the OS will install the necessary drivers when first connected to a USB port of your computer.

Firmware : Make sure your device is updated to the lastest firmware. Download and install the latest Xone Controller Editor from https://www.allen-heath.com/hardware/xone-series/xonek3/resources/ , then click on SETUP and follow firmware update instructions.

STEP 3 : VirtualDJ Setup

Download and install VirtualDJ from https://www.virtualdj.com/download/index.html (in case you have not done already)

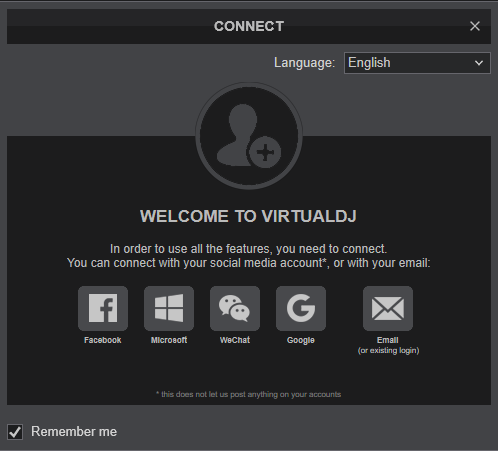

Once VirtualDJ is launched, a Connect window will appear to enter your virtualdj.com account credentials.

A Pro Infinity, a Plus Controller or a Pro Subscription License is required to fully use the Xone K3. Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.
https://www.virtualdj.com/buy/index.html

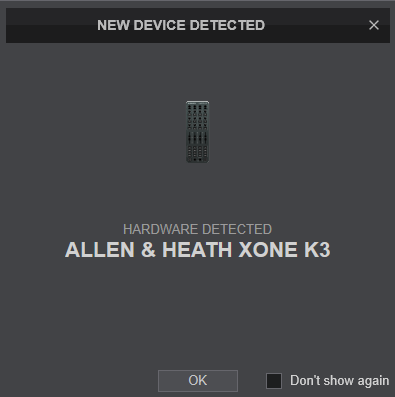

A detection window will appear when the unit is first connected with VirtualDJ, verifying proper connection.

Click OK.

The device is now ready to operate.
