Hardware Manuals


Pioneer - DDJ-1000

Controller Settings & Options


Pioneer DDJ-1000 offers a variety of settings and options regarding it's operation.
You can change these settings by using a special PAD Page named "DDJ1K Settings". You can access this pad page via VirtualDJ GUI, or by holding down the HOTCUE pad mode button for more than one second.
Please note that this pad page is accessible only when DDJ-1000 is connected to VirtualDJ. Use the PAGE/PARAMETERS buttons to cycle through the available pages.

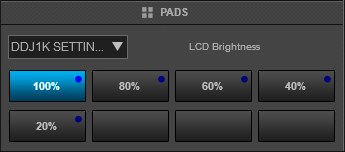

LCD Brightness



Press one of the pads to adjust the brightness of the on jog LCD display. Five levels of brightness are offered.

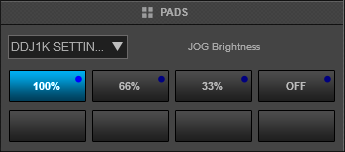

JOG Brightness



Press one of the pads to adjust the brightness of JOG ring leds. Three levels of brightness are offered, among with an option to turn the leds off completely.

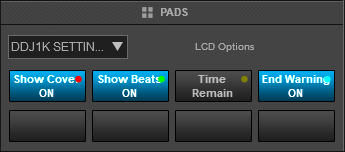

LCD Options



Press the 1st pad to toggle Cover art display on/off
Press the 2nd pad to toggle "Cue Scope" display on/off
Press the 3rd pad to toggle the displayed time between elapsed and remain time modes
Press the 4th pad to toggle the track end warning on/off (when track end warning is active the leds of the JOG ring will blink on the last 30 seconds of the track)

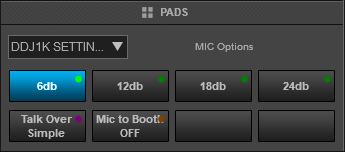

MIC Options



Press one of the first four pads to adjust the desired level of Talk Over level.
Press the 5th pad to toggle between the two available Talk Over modes (Simple & Advanced)
Press the 6th pad to set whether or not the sound of the MIC should be sent on BOOTH output as well.

For more information regarding the Talk Over functionality of the device and the available modes, please read the unit's operational manual.

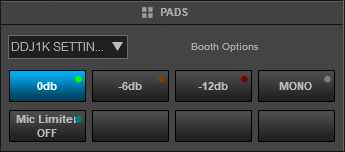

Booth Options



Press one of the first 3 pads to set the desired level attenuation for the Booth Output.
Press the 4th pad to toggle the Booth Output between Stereo and Mono output modes.
Press the 5th pad to toggle a limiter for the MIC level sent to Booth Output on/off

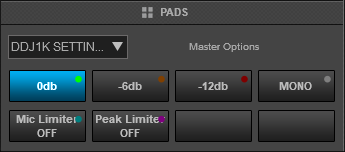

Master Options



Press one of the first 3 pads to set the desired level attenuation for the Master Output.
Press the 4th pad to toggle the Master Output between Stereo and Mono output modes.
Press the 5th pad to toggle a limiter for the MIC level sent to Master Output on/off
Press the 6th pad to toggle a peak limiter for the Master Output on/off

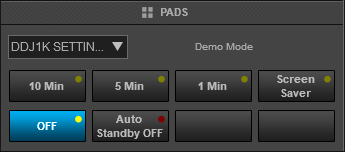

Demo Mode



Press one of the first 3 pads to set the desired time after which the unit will enter "Demo Mode" if no activity is detected.
Press the 4th pad to set the "Demo Mode" to screensaver mode.
Press the 5th pad to turn off "Demo Mode" completely
Press the 6th pad to toggle the Auto Standby feature of the device on/off.

For more information regarding "Demo Mode" and the Auto Standby feature, please read the unit's operational manual

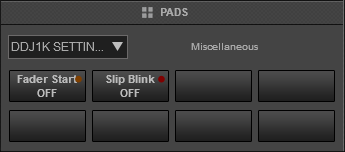

Miscellaneous



Press the 1st pad to toggle "Fader Start" feature on/off. When Fader Start is enabled, holding down SHIFT button while moving the volume faders will start or stop the deck depending on the movement of the volume fader.
Press the 2nd pad to toggle "Slip Blink" feature on/off. When Slip Blink is enabled, activating slip mode will make the pads and jog leds to flash in order to indicate that their action is now temporary.



For further Technical features and specifications, visit

Pioneer DDJ-1000
Product's Page
