Pioneer - DDJ-SX3

SETUP



Firmware & Drivers


Drivers For both Windows and Mac OSX, download and install the necessary drivers from https://www.pioneerdj.com/en/support/software/DDJ-SX3/

Firmware : At the moment this manual was written, there is no firmware update available.

VirtualDJ Setup


Download and install VirtualDJ 8 from http://www.virtualdj.com/download/index.html (in case you have not done already)

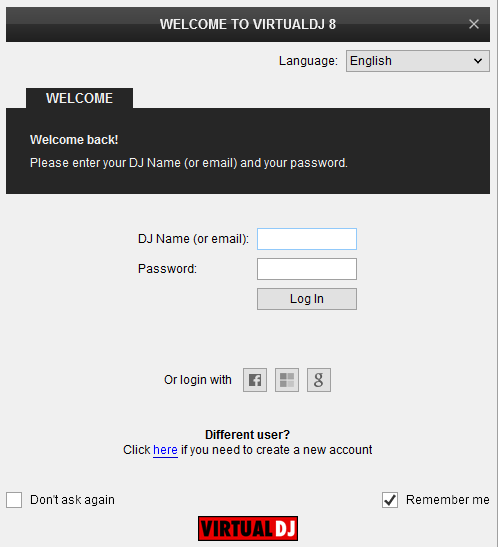

Once VirtualDJ 8 is launched, a Login Window will appear. Login with your virtualdj.com account.

A Pro Infinity, a Subscriber or a PLUS License is required to fully use the Pioneer DDJ-SX3. Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.
http://www.virtualdj.com/buy/index.html

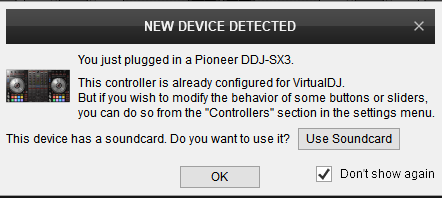

A detection window will appear next asking to use or not the pre-defined audio setup with the built-in sound card of the DDJ-SX3.

Click on the "Use Soundcard" button and make sure you have your speakers connected to the Master Output of the DDJ-SX3. You can still change the Audio Setup from Settings->AUDIO tab.

Click to OK.


The unit is now ready to operate with VirtualDJ.

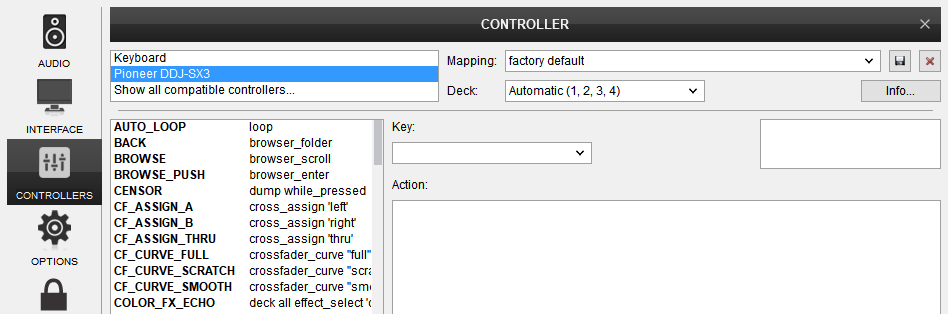

MIDI Operation


The unit should be visible in the CONTROLLERS tab of Config and the “factory default” available/selected from the Mappings drop-down list. The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.



Find more details at http://www.virtualdj.com/wiki/VDJ8script.html

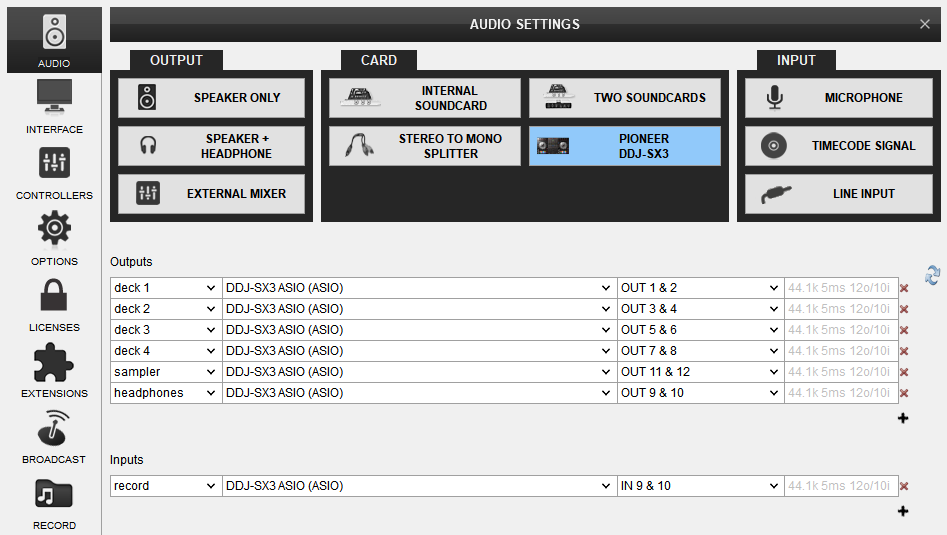

AUDIO Setup


The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that. Since the DDJ-SX3 requires an "External Mixer" audio setup, your speakers need to be connected to the Master Output sockets at rear panel of the unit.



Please read the manual of DDJ-SX3 for further functionality https://www.pioneerdj.com/en/support/documents/ddj-sx3/

For further software settings please refer to the User Guides of VirtualDJ 8.
http://www.virtualdj.com/manuals/virtualdj8/index.html
