Pioneer DJ - DDJ-WeGO

Installation


Firmware & Drivers


Firmware: Update the firmware of the unit to the latest version from http://www.pioneerdj.com/en/support/software/ddj-wego/#firmware-update

Drivers (for Windows only): Install the latest ASIO drivers from http://www.pioneerdj.com/en/support/software/ddj-wego/#drivers
No driver is required for Mac OSX computers. Mac OS standard audio driver will be automatically installed when the DDJ-WeGO is connected to your Mac with a USB cable.

VirtualDJ 8 Setup


Download and install VirtualDJ 8 from http://www.virtualdj.com/download/index.html (in case you have not done already)

Once VirtualDJ 8 is launched, a Login Window will appear to enter your virtualdj.com account credentials.

A Pro Infinity, a Plus Controller or a Pro Subscription License is required to fully use the Pioneer DDJ-WeGO Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.
http://www.virtualdj.com/buy/index.html

The Pioneer DDJ-WeGO is also operating with the bundled VirtualDJ Limited Edition.
Read further about the procedure required for VirtualDJ 8 LE at the Limited Edition Chapter


A detection window will appear right after, asking to use or not the pre-defined audio setup with the built-in sound card of the DDJ-WeGO Click on the "Use Soundcard" if your speakers are connected to the Master Output of the DDJ-WeGO.
You can still make changes in the Audio setup from VirtualDJ Settings->AUDIO tab.

If the tailored WeGO skin is pre-installed, an additional button Change Skin will be available to load the skin, or continue with the default skin of VirtualDJ 8.

An additional Enter Keycode button will be available if the VirtualDJ 8 Limited Edition is installed.

Make your selections and press OK.


The unit is now ready to operate.


MIDI Operation


The unit should be visible in the CONTROLLERS tab of Config and the “factory default” available/selected from the Mappings drop-down list. The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.

Find more details at
http://www.virtualdj.com/wiki/VDJ8script.html

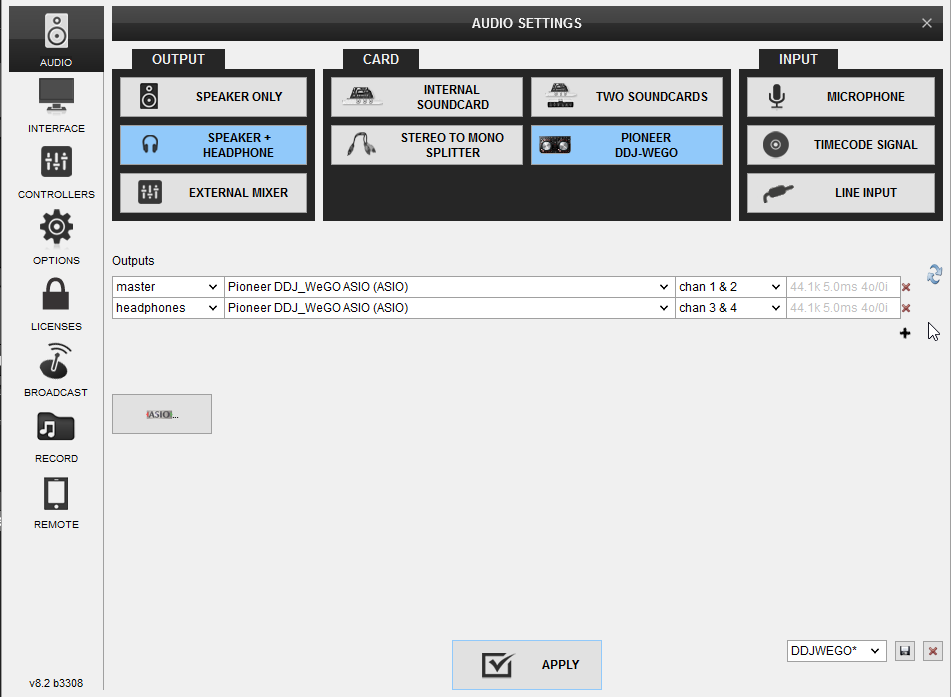

AUDIO Setup


The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that.

Alternative Audio setups can be applied in the same window.




For further software settings please refer to the User Guides of VirtualDJ 8.
http://www.virtualdj.com/manuals/virtualdj8/index.html
