Numark - Dashboard


With Dashboard’s 4.3-inch full color displays, you have overview of VirtualDJ Deck and Browser features. The displays give you access to various track and Browser info and you can monitor your music’s waveforms on either the center or side screens. You can also browse through your music by Song, Artist, Time, BPM, and Key. You can use Dashboard along with every VirtualDJ compatible unit.

Firmware & Drivers

Firmware : Update the firmware of the unit to the latest available version from https://www.numark.com/product/dashboard

Drivers : (Windows only) Download and install the latest Windows drivers from https://www.numark.com/product/dashboard. It is strongly advised to install drivers prior plugging the unit to a USB computer port.
No driver is necessary to be installed on Mac OSX computers.

VirtualDJ 8 Setup

Download and install VirtualDJ 8 from http://www.virtualdj.com/download/index.html (in case you have not done already)

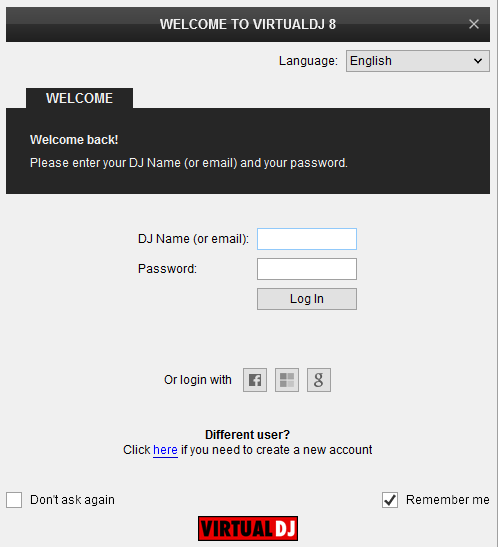

Once VirtualDJ is opened, a Connect Window will appear. Login with your virtualdj.com account’s credentials.

A Pro Infinity, a PLUS or a Pro Subscription License is required to use the Numark Dashboard. Without any of the above Licenses, the unit will operate for 10 minutes each time you restart VirtualDJ.

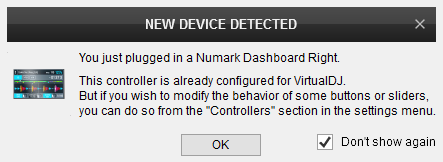

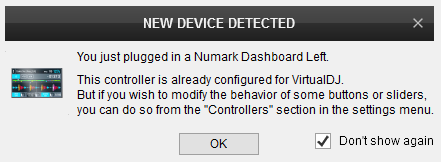

A detection windows will appear to verify the proper connection of the unit.

Click to OK for both

The unit is now ready to operate.

MIDI Operation

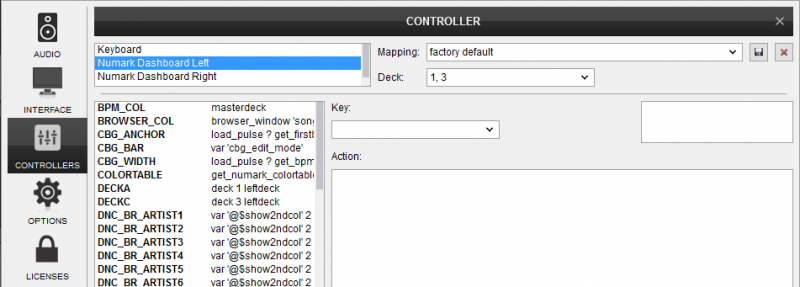

The unit should be visible in the MAPPINGS tab of VirtualDJ Settings as 2 devices (Left and Right Dashboard) and the “factory default” available/selected from the Mappings drop-down list for both of them.

The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.
Find more details at https://www.virtualdj.com/wiki/VDJ8script.html

Note : If the LCD screens are inverted (i.e. the Left LCD screen shows the info of the right deck and vice versa), make sure the Dashboard Left unit is assigned to Decks 1,3 and the Dashboard Right unit is assigned to Decks 2,4.

For further software settings please refer to the User Guide of VirtualDJ.
